Widgets

CsoundQt offers a set of widgets to create a Graphical User Interface (GUI). Widgets can be used to show what happens in a real-time performance of Csound, or to control the performance itself. If CsoundQt is built with RtMidi, a widget can directly be connected with any MIDI controller.

You will find a built-in documentation of the widget in CsoundQt's Examples > Widgets. It is recommended to read and click it in addition to the description here.

How to Create a Widget

Open the widget panel (push the "Widgets" button or go to View > Widgets) and right-click in it. You get a submenu:

widgets submenu

Choose a widget, for instance a SpinBox. You will get a new panel with the properties of the widget:

widgets properties

  • x/y — absolute position in the panel in pixel
  • Width/Height — size of the widget in pixel
  • Min/Max — minimum/maximum number the widget can return
  • Channel name — a name for the communication between Csound and a widget
  • Resolution — the smallest resolution of the numbers (if set to 1, you will only get integers)
  • Text — the current value (usually set by the user in real-time)
  • Text Color / Background Color — clicking on these buttons opens a dialog for setting colors

Edit and Play Mode

Once you clicked OK, you will see the SpinBox in the widget panel. If you want to change the position, go to Edit > Widget Edit Mode (or Ctrl+E).

edit mode

If Edit Mode is on, you can move the widgets or change their size by dragging the right bottom corner.

Like in PD or Max, you can toggle all the time between Edit and Play Mode. If you want to change any of the preferences, double-click on a widget in Edit Mode, or right-click on it in Play Mode (and choose Properties).

In Play Mode, you can change the widget values by the mouse and/or the computer keyboard. Note that a new value for the SpinBox will only be active when you hit the Return key.

Get Values from a Widget

Widgets communicate with Csound via a channel name. As shown above, you set the channel name in the widgets properties. Choose a meaningful name:

channel name You can receive the values from a widget via two opcodes: invalue or chnget. If the widget channel is "frequency" (you type it blank but it is a string), the lines of Csound code would be either

kFreq invalue "frequency"

or

kFreq chnget "frequency"

Most of the widgets return numbers, but some (LineEdit and Button) can return strings. In this case, the Csound code will be something like this:

S_file invalue "filename"
S_file chnget "filename"

Whether you use invalue or chnget, is more or less up to your preferences. Both are slightly different implemented (have a look at the Csound Manual for details). For passing long strings to Csound, chnget is currently preferable. Also, the chnget/chnset system is much more efficient for CsoundQt files which use a lot of widgets. Remember to declare the channels in the header of your csd file, for instance:

chn_S "filename", 3
chn_k "frequency", 3

In the widget's submenu you will find an item "add chn_k to csd" which does this job for you. This declaration is in particular necessary if you want to receive the current values of the widgets on startup.

The k-Variables in Csound, which get the numbers of any widget, will usually be smoothed, to avoid jumps or sudden transitions (in particular for amplitudes). This can be done easily with the port opcode. This is a typical code:

kDb invalue "db" ;receive dB value from a widget
kDb port kDb, .1 ;smoothes the transitions
out aSound * ampdb(kDb) ;applies as volume

Reserved Channels

There are some channels which carry some particular functionality. They all start with the underscore character. The first four are for Control/Transport (and usually have no receiver in the Csound code), whereas _Browse and _MBrowse will pass a string to Csound.

  • _Play — If the value of this channel is 1, CsoundQt will play the current csd file (similar to pressing the Run button).
  • _Pause — If the value of this channel is 1, CsoundQt will pause/resume the performance (= Pause button).
  • _Stop — If the value of this channel is 1, CsoundQt will terminate the performance (= Stop button).

  • _Render — If the value of this channel is 1, CsoundQt will render the current csd to an audio file (= Render button).

  • _Browse — Use a button widget in the value mode. When a button is set to this channel, clicking on it (in Play Mode) will open a Select File dialog. You can choose here any file, and it will be saved in a string variable. You can also use this channel more than once by adding anything; for instance _Browse1 and _Browse2 will store two different file names.

  • _MBrowse — The behaviour is similar to _Browse, but you can select here more than one file. Ths paths will be seperated by a | character. The following lines of Csound code show a possible result:
    chn_S "_MBrowse", 2 ;declares channel for input
    instr Receive_Filenames
        S_files chnget "_MBrowse"
        puts S_files, 1
    endin
    -> /home/jh/Desktop/7chnls.aiff|/home/jh/Desktop/abend1.wav|/home/jh/Desktop/BratscheStereo.aiff|/home/jh/Desktop/chirp40-1300Hz.wav

Presets

A preset is another reserved channel. Its goal is to store and recall a widget snapshot. The most simple and intuitive way to store and recall presets is to right-click in the widget panel, and the choose Store Widget. There is also a build-in example: Examples > Widgets > Presets.

Pass Values to a Widget

Widgets can also be used to show values which are changing in Csound, as visual feedback for the user or performer. Any k-variable can be shown by many widgets, like sliders, displays or spin boxes. Just set the widget channel to any useful name, and insert either outvalue or chnset in the Csound code, for instance:

kDb randomi -30, -10, 1/2, 3
outvalue "db", kDb
chnset kDb, "db"

Widget Types Overview

This is a short description, followed by a screenshot from the buildin widget examples.

Slider

The standard widget, well known in all Audio GUIs. It can be either vertical or horizontal.
slider

Label

A textbox for comments or similar.
label

Display

Can display any value from Csound (numbers or strings).
display

ScrollNumber

Number box whichs values are changed by mouse scrolling.
scroll number

LineEdit

A text field which can be used either for user input (passed to Csound as a string), or display any string (for instance a file name which is received by the _Browse reserved channel).
line edit

SpinBox

A number box either for user input (via type/return or the scroll bar), or to show any Csound k-value.
spin box

Button

A button can either fire an event (trigger an instrument or create a function table), or pass a value when pushed. A latch option transforms a button to a toggle.
button

Knob

Similar functionality as slider, just different design.
knob

Checkbox

Sends 1/0 if checked/unchecked. So the behaviour is actually the same as a button in latch mode.
checkbox

Shows names, but returns numbers (starting from zero) for the different items.
menu

Controller

A widget with many possibilities. Can be used as x/y pad, or as slider, or as signal display.
controller

Console

Displays the output of the Csound console in a widget.
console

Graph

Displays Csound's function tables, and FFT analysis, too.
graph

Scope

Displays Csound's audio output, and some more ...
scope

Virtual Keyboard

This widget is not under the Create Widget submenu, as it is not part of the widget panel. It is created by pushing the Keyboard button, and pops up as independent panel. It can substitute an external MIDI keyboard.
midi keyboard

MIDI Integration

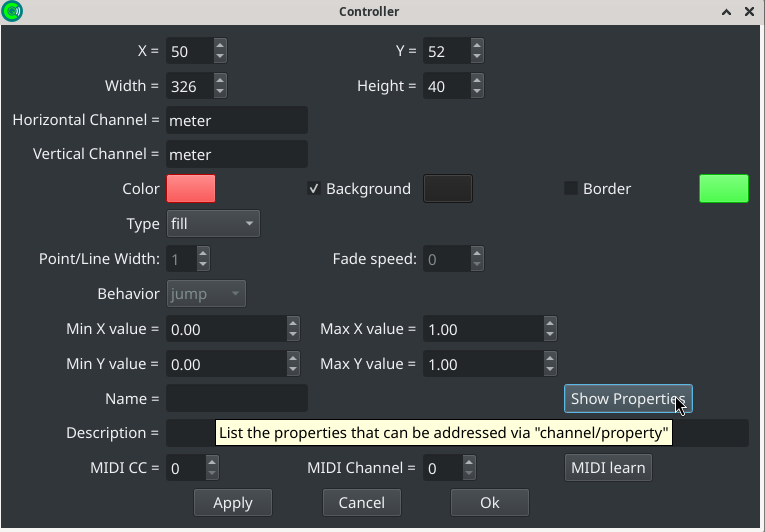

If your CsoundQt has been compiled with RtMidi support, you can assign any MIDI controller directly to any widget. Just open the properties and type in MIDI channel and Controller Number, or use the MIDI Learn functionality.
midi learn
